so, after i made the matching plate (the white plastic thing) i attached the FD mount to the hacked CCD mount. i also hacksawed off the front part of the metal side of the case (where the original lens used to be), this is so i can actually reach the mount point so i can easily change lenses and reach the aperture ring.

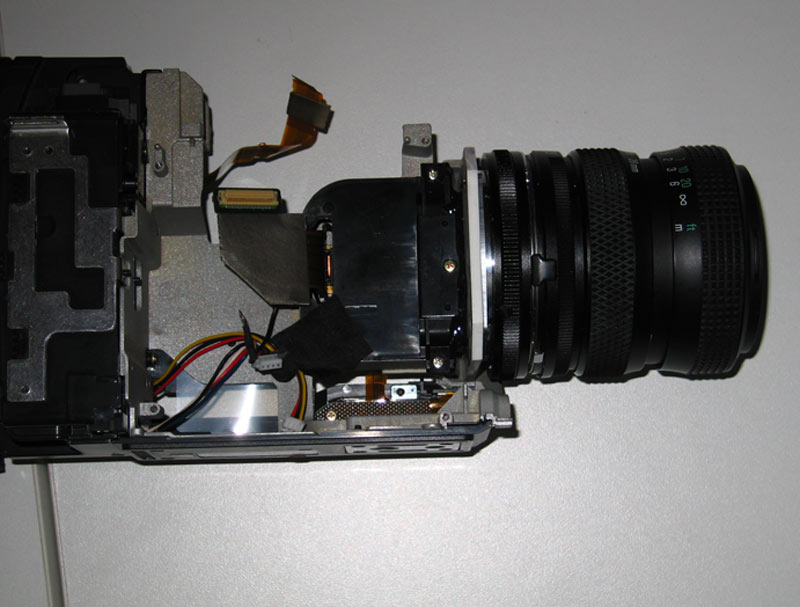

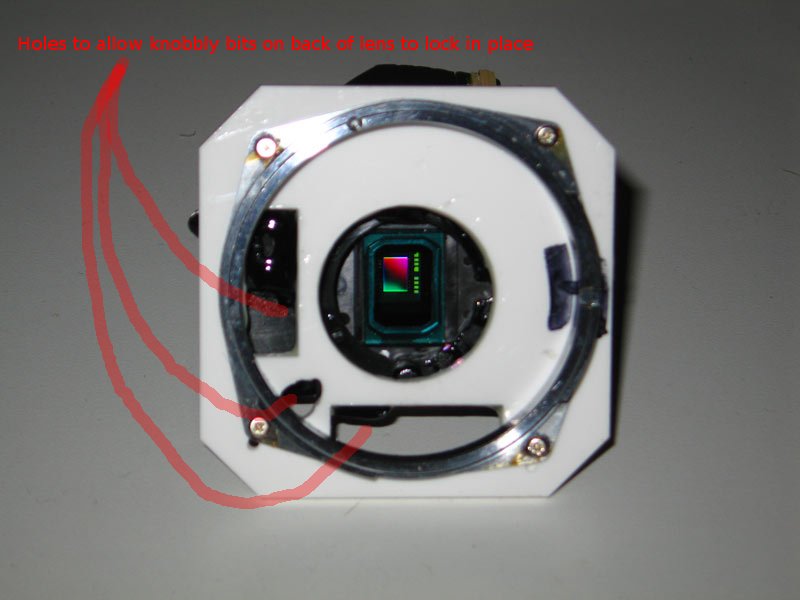

here is the view of the assembly from the front.

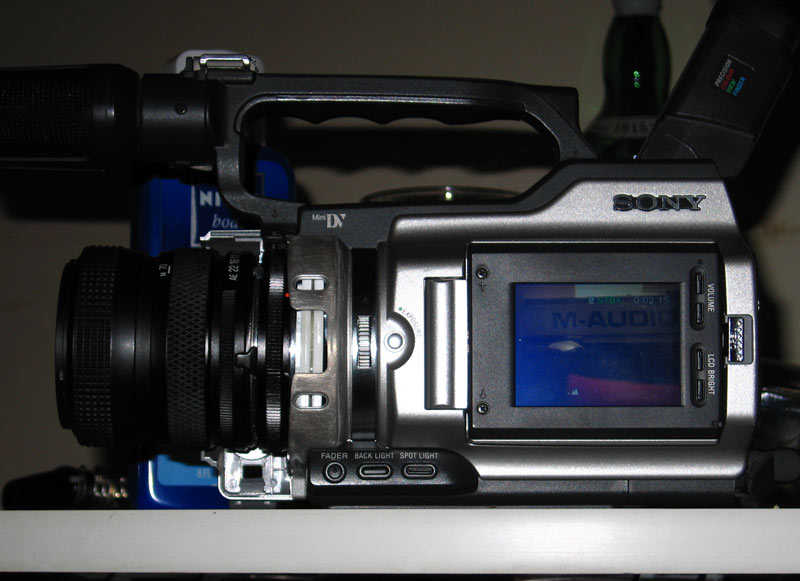

and the grand finale - fully assembled. you can see here i threw in another white plate to increase the lens-ccd distance as focussing was a bit tricky as above. this was the hardest part -- it really should be millimeter accurate - but its not. oh well, it seems to do the trick!


today i just opened up the ccd mount, and made some shim's from aluminium sheet. the lens-ccd distance is now within 1mm -- perfect. now it is time to buy some fancy lenses. (i have my eye on a full frame 14mm....)

Ok. I think I need to make a relay system. Here is my initial sketch of how it should work:



of course, this will make the image upside-down, but i think i can tweak the LCD display to always display upside down. It already flips the image when you turn it around, so I just have to find the sensor that does that, and reverse the sense. Note, I'm also planning to switch to Nikon F-mounts as they seem to be easier to find (at least at my local camera store). As for the prime, I'm looking at the Peleng 8mm- it's pretty cheap and looks like it will do the trick.

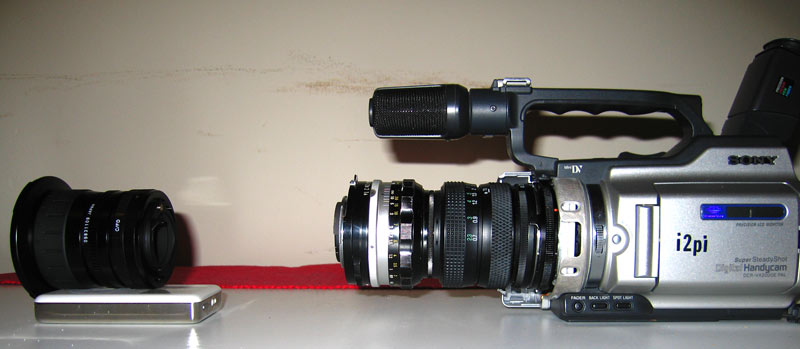

ok, after a trip to B&H (and some very strange looks) I got all the bits that I needed. But they forgot to put them in my bag, so I'm going to have to go back and get the tube. As you can see below, the system lets in a little too much light on the sides :P.



After I pick up an extension tube & make a coupler, I'll have to make an extension arm from the tripod to support the extra weight. And Then, I'll be rocking a truly tricked out camera.
